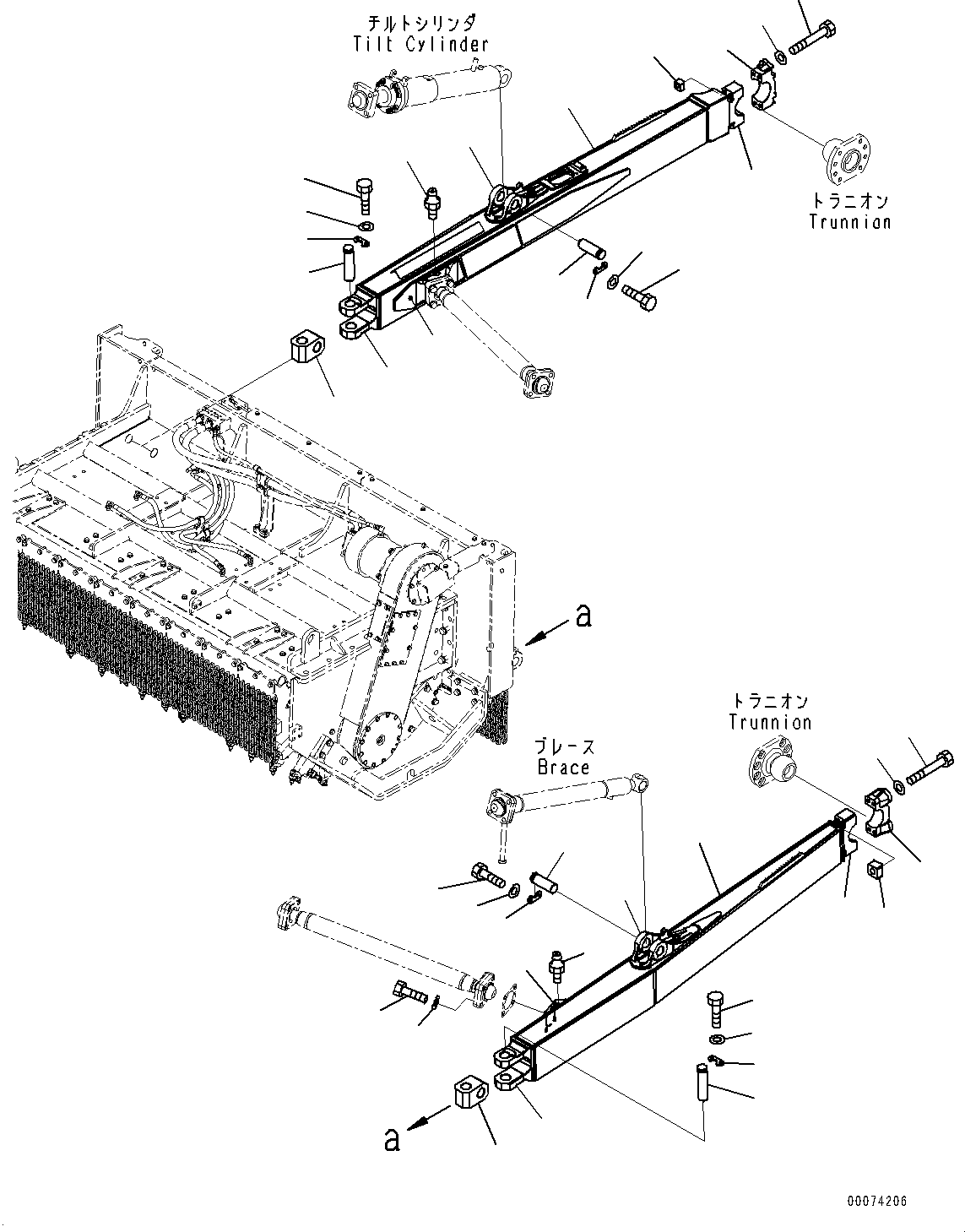

DOZER FRAME, FRAME (#1006-)
6
5
4
3
2
1
14
15
16
17
18
7
8
9
40
39
10
11
12
13
19
30
32
31
29
28
27
26
25
24
23
22
21
20
38
37
36
35
34
33
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 154-71-71181 | [1] | Frame,L.H. Komatsu China | |
| ["SN: 1006-UP"] analogs:["1547171182"] | ||||
| 2. | 154-71-71320 | [1] | Bracket,L.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 3. | 154-71-71350 | [1] | Bracket,L.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 4. | 154-71-71731 | [1] | Bracket,L.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 5. | 154-71-71750 | [1] | Bracket,L.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 6. | 175-71-11482 | [1] | Cap Komatsu | 18 кг. |
| ["SN: 1006-UP"] | ||||
| 7. | 175-71-11491 | [4] | Bolt Komatsu China | 0.72 кг. |
| ["SN: 1006-UP"] analogs:["R1757111491"] | ||||
| 8. | 175-71-11520 | [4] | Nut Komatsu China | 0.22 кг. |
| ["SN: 1006-UP"] analogs:["R1757111520"] | ||||
| 9. | 01643-32260 | [4] | Washer Komatsu China | 0.042 кг. |
| ["SN: 1006-UP"] | ||||
| 10. | 154-71-22470 | [1] | Pin Komatsu OEM | 5.2 кг. |
| ["SN: 1006-UP"] | ||||
| 11. | 17A-71-12361 | [1] | Lock Komatsu | 0.223 кг. |
| ["SN: 1006-UP"] | ||||
| 12. | 01010-81635 | [2] | Bolt Komatsu | 0.088 кг. |
| ["SN: 1006-UP"] analogs:["0101061635", "801015185", "0101051635", "0101031635"] | ||||
| 13. | 01643-31645 | [2] | Washer Komatsu | 0.072 кг. |
| ["SN: 1006-UP"] analogs:["802170005", "0164301645"] | ||||
| 14. | 154-71-21290 | [1] | Pin Komatsu OEM | 3.95 кг. |
| ["SN: 1006-UP"] | ||||
| 18. | 154-71-22261 | [1] | Joint Komatsu China | 14.5 кг. |
| ["SN: 1006-UP"] | ||||
| 19. | 07020-00000 | [1] | Fitting, Grease Komatsu China | 0.006 кг. |
| ["SN: 1006-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"] | ||||
| 20. | 154-71-71191 | [1] | Frame,R.H. Komatsu China | |
| ["SN: 1006-UP"] analogs:["1547171192"] | ||||
| 22. | 154-71-71340 | [1] | Bracket,R.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 23. | 154-71-71360 | [1] | Bracket,R.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 24. | 154-71-71760 | [1] | Bracket,R.H.,Welded Komatsu China | |
| ["SN: 1006-UP"] | ||||
| 25. | 17A-71-12280 | [1] | Cap Komatsu | 16 кг. |
| ["SN: 1006-UP"] | ||||
| 39. | 01010-82490 | [8] | Bolt Komatsu China | 0.428 кг. |
| ["SN: 1006-UP"] analogs:["0101062490", "0101032490", "0101052490"] | ||||
| 40. | 01643-32460 | [8] | Washer Komatsu China | 0.063 кг. |
| ["SN: 1006-UP"] analogs:["R0164332460"] | ||||
