EQUALIZER BAR (SPECIAL ORDER) D375A-3 S/N 17001-UP (6 Track Roller) Komatsu


OK. Запрос отправлен.
BULLDOZERS
D375A-3 S/N 17001-UP (6 Track Roller)
MAIN FRAME AND RELATED PARTS
EQUALIZER BAR (6 TRACK ROLLER)
EQUALIZER BAR (6 TRACK ROLLER)
210030
MAIN FRAME (SPECIAL ORDER)
MAIN FRAME (SPECIAL ORDER)
210020
MAIN FRAME (6 TRACK ROLLER)
MAIN FRAME (6 TRACK ROLLER)
210010
PIVOT SHAFT
PIVOT SHAFT
210050
PIVOT SHAFT (FOR DUAL TILT PITCH DOZER)
PIVOT SHAFT (FOR DUAL TILT PITCH DOZER)
210060

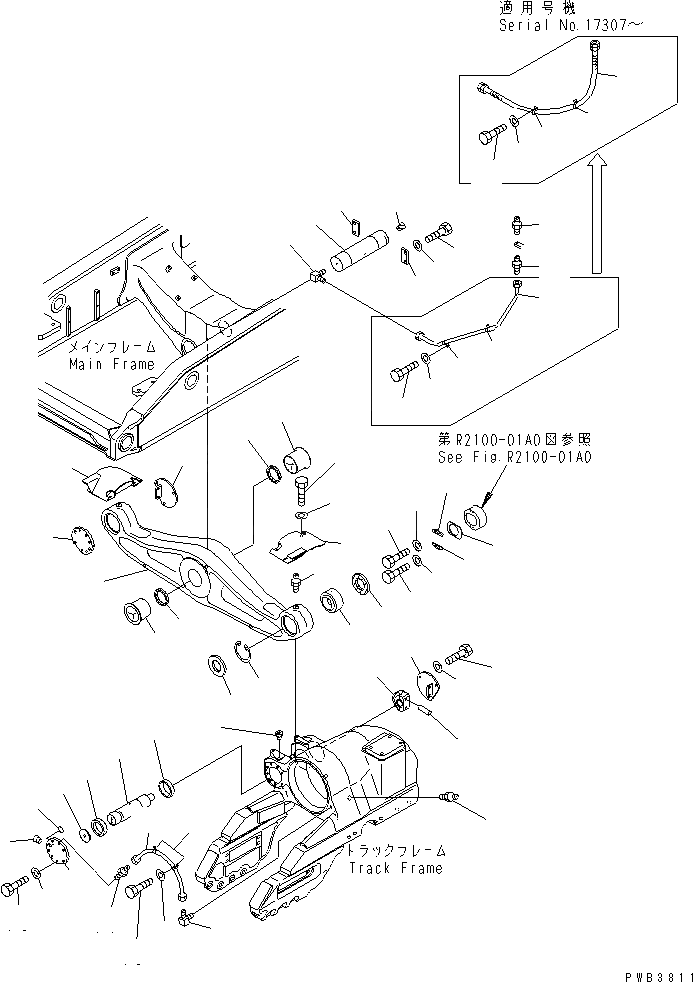

EQUALIZER BAR (SPECIAL ORDER)

D375A-3 S/N 17001-UP (6 Track Roller)
1
2
2
3
3
4
5
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
29
30
31
32
33
34
35
36
37
38
38
39
39
39
39
40
40
41
41
42
43
44
45
46
47
48
49
50
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
     195-50-00180   [1]   EQUALIZER BAR ASS'Y Komatsu 464 кг.
    ["SN: 17001-UP"] analogs:["1955041111", "1955000181", "1955041112", "1955000182"] |$4.
   1.   195-50-41111   [1]   EQUALIZER BAR Komatsu 464 кг.
    ["SN: 17001-UP"] analogs:["1955000181", "1955041112", "1955000182", "1955000180"]
   2.   195-50-41130   [2]   BUSHING Komatsu 4.24 кг.
    ["SN: 17001-UP"] analogs:["1955041132", "1955041131"]
   3.   195-78-41320   [2]   SEAL Komatsu China 0.02 кг.
    ["SN: 17001-UP"]
   4.   195-50-41161   [2]   BUSHING Komatsu China 7.76 кг.
    ["SN: 17001-UP"]
   5.   195-50-41170   [4]   SEAL Komatsu 0.96 кг.
    ["SN: 17001-UP"]
   6.   04071-00160   [2]   RING,SNAP Komatsu 0.151 кг.
    ["SN: 17001-UP"]
   7.   07020-00000   [2]   FITTING,GREASE Komatsu China 0.006 кг.
    ["SN: 17001-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"]
8.   195-50-41120   [1]   PIN Komatsu 48.76 кг.
    ["SN: 17001-UP"]
9.   195-50-11320   [2]   PLATE Komatsu 0.74 кг.
    ["SN: 17001-UP"] analogs:["1955011320NK"]
10.   01010-62050   [4]   BOLT Komatsu 0.19 кг.
    ["SN: 17001-UP"] analogs:["0101052050", "0101082050", "0101032050"]
11.   01643-32060   [4]   WASHER Komatsu China 0.044 кг.
    ["SN: 17001-UP"] analogs:["802170007", "0164322045", "0164302045"]
12.   07049-02430   [1]   PLUG Komatsu 0.003 кг.
    ["SN: 17001-UP"]
13.   195-50-41180   [4]   BUSHING Komatsu 1.18 кг.
    ["SN: 17001-UP"]
14.   195-50-41151   [2]   SHAFT Komatsu 20.4 кг.
    ["SN: 17001-UP"]
15.   195-50-41361   [1]   COVER,L.H. Komatsu China
    ["SN: 17001-UP"]
16.   195-50-41371   [1]   COVER,R.H. Komatsu China
    ["SN: 17001-UP"]
17.   07000-12020   [2]   O-RING Komatsu 0.001 кг.
    ["SN: 17001-UP"]
17.   07000-52020   [2]   O-RING,(B) Komatsu 0.02 кг.
    ["SN: 17001-UP"]
18.   195-50-41350   [2]   SEAL Komatsu 0.075 кг.
    ["SN: 17001-UP"]
19.   01010-81645   [8]   BOLT Komatsu China 0.104 кг.
    ["SN: 17001-UP"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"]
20.   01643-31645   [8]   WASHER Komatsu 0.072 кг.
    ["SN: 17001-UP"] analogs:["802170005", "0164301645"]
21.   07043-70108   [2]   PLUG Komatsu 0.005 кг.
    ["SN: 17001-UP"] analogs:["07043A0108"]
22.   195-50-41311   [1]   COVER,L.H. Komatsu China
    ["SN: 17001-UP"]
23.   195-50-41321   [1]   COVER,R.H. Komatsu China
    ["SN: 17001-UP"]
24.   01010-61630   [4]   BOLT Komatsu 0.081 кг.
    ["SN: 17001-UP"] analogs:["0101051630", "0101031630", "0101081630"]
26.   195-50-41280   [2]   COVER Komatsu 0.05 кг.
    ["SN: 17001-UP"]
27.   195-50-41290   [4]   PLATE Komatsu China
    ["SN: 17001-UP"]
28.   01010-80825   [8]   BOLT Komatsu 0.015 кг.
    ["SN: 17001-UP"] analogs:["0101050825", "01010D0825", "801015087"]
29.   01602-20825   [8]   WASHER,SPRING Komatsu 0.004 кг.
    ["SN: 17001-UP"] analogs:["0160200825", "0231011020", "6124613790"]
30.   195-50-41240   [2]   STOPPER Komatsu 4.14 кг.
    ["SN: 17001-UP"]
31.   04022-12040   [4]   PIN,DOWEL Komatsu 0.035 кг.
    ["SN: 17001-UP"]
32.   195-50-41261   [1]   COVER,L.H. Komatsu China
    ["SN: 17001-UP"]
33.   195-50-41271   [1]   COVER,R.H. Komatsu China
    ["SN: 17001-UP"]
34.   01010-81640   [6]   BOLT Komatsu 0.264 кг.
    ["SN: 17001-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"]
37.   203-62-21740   [1]   NIPPLE Komatsu 0.02 кг.
    ["SN: 17307-UP"]
37.   07213-50710   [1]   CONNECTOR Komatsu 0.022 кг.
    ["SN: 17001-17306"]
38.   17M-03-26140   [1]   HOSE Komatsu OEM 0.2 кг.
    ["SN: 17307-UP"]
38.   195-50-41250   [1]   TUBE Komatsu China
    ["SN: 17001-17306"]
39.   198-904-4280   [2]   CLIP Komatsu 0.02 кг.
    ["SN: 17307-UP"]
39.   566-16-11970   [2]   CLIP Komatsu 0.01 кг.
    ["SN: 17001-17306"]
40.   01010-81016   [2]   BOLT Komatsu 0.06 кг.
    ["SN: 17001-UP"] analogs:["0101051016"]
41.   01643-31032   [2]   WASHER Komatsu 0.054 кг.
    ["SN: 17001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
42.   202-62-21430   [1]   ELBOW Komatsu 0.04 кг.
    ["SN: 17307-UP"]
42.   176-43-41350   [1]   ELBOW Komatsu 0.1 кг.
    ["SN: 17001-17306"]
43.   195-50-41331   [2]   TUBE Komatsu 0.65 кг.
    ["SN: 17001-UP"]
46.   01010-81020   [4]   BOLT Komatsu 0.161 кг.
    ["SN: 17001-UP"] analogs:["801014093", "0101051020", "801015108"]
48.   20D-68-11780   [2]   ELBOW Komatsu 0.08 кг.
    ["SN: 17001-UP"]
