EQUALIZER BAR D475A-5 S/N 20001-UP (For Alaska Extreme Cold Terrain Spec.) Komatsu


OK. Запрос отправлен.
BULLDOZERS
D475A-5 S/N 20001-UP (For Alaska Extreme Cold Terrain Spec.)
MAIN FRAME AND RELATED PARTS
MAIN FRAME
MAIN FRAME
210010
PIVOT SHAFT(#20001-20007)
PIVOT SHAFT(#20001-20007)
210030
PIVOT SHAFT(#20008-)
PIVOT SHAFT(#20008-)
210040

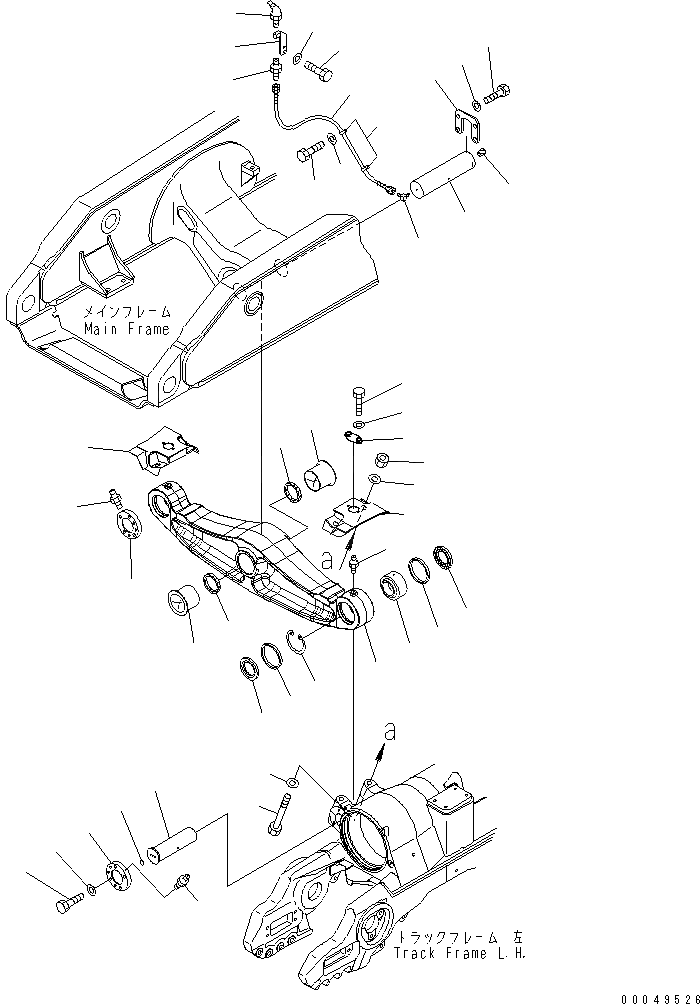

EQUALIZER BAR

D475A-5 S/N 20001-UP (For Alaska Extreme Cold Terrain Spec.)
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
     198-50-00114   [1]   EQUALIZER BAR Komatsu 650 кг.
    ["SN: 20122-UP"] analogs:["1985000111"] |$3.
     198-50-00113   [1]   EQUALIZER BAR Komatsu 650 кг.
    ["SN: 20109-20121"] analogs:["1985000114", "1985000111"] |$4.
     198-50-00111   [1]   EQUALIZER BAR ASS'Y Komatsu 650 кг.
    ["SN: 20001-20108"] analogs:["1985000114"] |$5.
   2.   198-50-51131   [2]   BUSHING Komatsu 9.4 кг.
    ["SN: 20001-UP"]
   3.   198-50-11171   [2]   SEAL Komatsu 0.03 кг.
    ["SN: 20001-UP"]
   4.   198-50-51161   [2]   BUSHING Komatsu 15.1 кг.
    ["SN: 20001-UP"]
   5.   198-50-51170   [4]   SEAL Komatsu 0.58 кг.
    ["SN: 20001-UP"]
   6.   198-50-51380   [2]   RING Komatsu 0.94 кг.
    ["SN: 20001-UP"]
   7.   04071-00200   [2]   RING Komatsu 0.2 кг.
    ["SN: 20001-UP"]
   8.   07020-00000   [2]   FITTING Komatsu China 0.006 кг.
    ["SN: 20001-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"]
9.   198-50-51120   [1]   PIN Komatsu 76.4 кг.
    ["SN: 20001-UP"]
10.   198-50-42540   [1]   LOCK Komatsu 3.5 кг.
    ["SN: 20001-UP"]
11.   01010-82455   [4]   BOLT Komatsu 0.31 кг.
    ["SN: 20001-UP"] analogs:["01010B2455", "0101052455", "0101032455", "0101062455"]
12.   01643-32460   [4]   WASHER Komatsu China 0.063 кг.
    ["SN: 20001-UP"] analogs:["R0164332460"]
13.   07049-03645   [1]   PLUG Komatsu China
    ["SN: 20001-UP"]
14.   198-50-61150   [2]   SHAFT Komatsu 37 кг.
    ["SN: 20001-UP"]
15.   198-50-61360   [1]   COVER Komatsu China
    ["SN: 20001-UP"]
16.   198-50-61370   [1]   COVER Komatsu China
    ["SN: 20001-UP"]
17.   07000-72020   [2]   O-RING Komatsu China 0.004 кг.
    ["SN: 20001-UP"] analogs:["0700062020", "R0700072020"]
18.   01010-82070   [8]   BOLT Komatsu 0.238 кг.
    ["SN: 20001-UP"] analogs:["0101032070", "0101062070", "0101052070", "801015653"]
19.   01643-32060   [8]   WASHER Komatsu China 0.044 кг.
    ["SN: 20001-UP"] analogs:["802170007", "0164322045", "0164302045"]
20.   198-50-61310   [1]   COVER Komatsu China
    ["SN: 20001-UP"]
21.   198-50-61320   [1]   COVER Komatsu China
    ["SN: 20001-UP"]
22.   198-50-61410   [4]   BOLT Komatsu 3.1 кг.
    ["SN: 20001-UP"]
23.   01643-33380   [8]   WASHER Komatsu 0.166 кг.
    ["SN: 20001-UP"]
24.   19M-09-12890   [4]   NUT Komatsu 0.38 кг.
    ["SN: 20001-UP"]
25.   198-50-61350   [2]   COVER Komatsu 1 кг.
    ["SN: 20001-UP"]
26.   01010-81225   [4]   BOLT Komatsu 0.074 кг.
    ["SN: 20001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
27.   01643-31232   [4]   WASHER Komatsu 0.027 кг.
    ["SN: 20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
28.   198-50-51210   [1]   BRACKET Komatsu China
    ["SN: 20008-UP"]
28.   198-50-51291   [1]   BRACKET Komatsu China
    ["SN: 20001-20007"]
31.   07020-00675   [1]   FITTING Komatsu China 0.011 кг.
    ["SN: 20001-UP"] analogs:["21D0989220", "37A099G004"]
32.   203-62-21740   [1]   NIPPLE Komatsu 0.02 кг.
    ["SN: 20001-UP"]
33.   175-54-35330   [1]   HOSE Komatsu China
    ["SN: 20001-UP"]
34.   198-904-4280   [3]   CLIP Komatsu 0.02 кг.
    ["SN: 20001-UP"]
35.   01010-81016   [3]   BOLT Komatsu 0.06 кг.
    ["SN: 20001-UP"] analogs:["0101051016"]
36.   01643-31032   [3]   WASHER Komatsu 0.054 кг.
    ["SN: 20001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
37.   202-62-21430   [1]   ELBOW Komatsu 0.04 кг.
    ["SN: 20001-UP"]
38.   07213-50710   [2]   CONNECTOR Komatsu 0.022 кг.
    ["SN: 20001-UP"]
