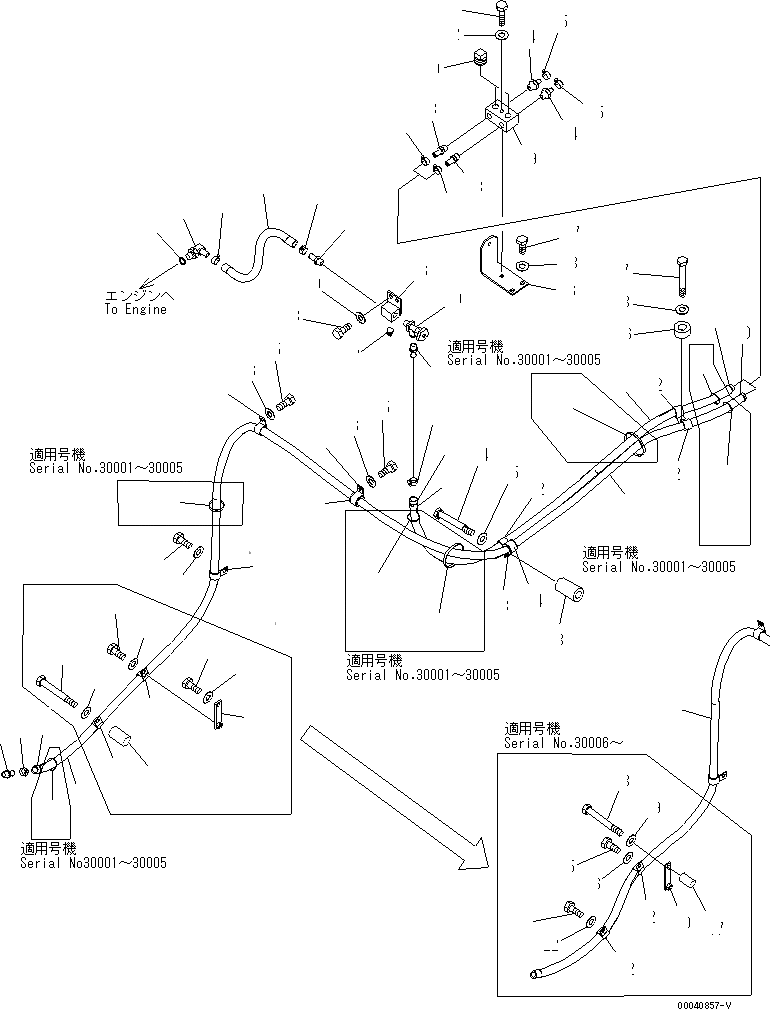

HEATER PIPING

D475ASD-5E0 S/N 30001-UP (Super Dozer Spec.)
1
2
3
3
4
5
6
6
6
6
7
7
7
7
7
7
8
8
8
9
9
10
10
11
11
12
12
12
12
12
13
14
15
15
15
15
16
16
16
16
17
17
18
18
19
19
20
20
21
21
21
22
22
22
23
24
25
26
27
28
29
30
31
31
32
32
32
32
33
34
35
36
37
38
39
40
41
42
43
43
44
44
45
45
46
47
48
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   198-911-6190   [1]   ELBOW Komatsu China
    ["SN: 30001-UP"]
2.   07002-12434   [1]   O-RING Komatsu China 0.01 кг.
    ["SN: 30001-UP"] analogs:["0700202434", "0700213434"]
3.   09479-02400   [2]   CLAMP Komatsu 0.02 кг.
    ["SN: 30079-UP"] analogs:["0947912400"]
3.   198-09-31210   [2]   CLAMP Komatsu 0.07 кг.
    ["SN: 30001-30078"]
4.   198-911-7360   [1]   HOSE ASS'Y Komatsu China
    ["SN: 30001-UP"]
5.   145-Z79-5610   [1]   JOINT Komatsu 0.08 кг.
    ["SN: 30001-UP"]
7.   08034-20536   [6]   BAND Komatsu 0.003 кг.
    ["SN: 30001-30005"]
8.   09483-10515   [1]   HOSE Komatsu China
    ["SN: 30001-UP"]
9.   09483-10539   [1]   HOSE Komatsu China
    ["SN: 30001-UP"]
10.   20Y-62-22790   [2]   BAND, RED Komatsu 0.001 кг.
    ["SN: 30001-UP"]
11.   20Y-62-22820   [2]   BAND, BLUE Komatsu 0.01 кг.
    ["SN: 30001-UP"]
12.   04434-52712   [4]   CLIP Komatsu 0.036 кг.
    ["SN: 30001-UP"]
13.   04434-53412   [1]   CLIP Komatsu 0.044 кг.
    ["SN: 30001-UP"]
14.   07095-20627   [1]   CUSHION Komatsu 0.02 кг.
    ["SN: 30001-UP"]
15.   01010-81225   [4]   BOLT Komatsu 0.074 кг.
    ["SN: 30006-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
16.   01643-31232   [4]   WASHER Komatsu 0.027 кг.
    ["SN: 30006-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
17.   195-01-16140   [1]   SPACER Komatsu China
    ["SN: 30001-UP"]
18.   01010-81060   [1]   BOLT Komatsu 0.126 кг.
    ["SN: 30001-UP"] analogs:["0101051060"]
19.   01643-31032   [1]   WASHER Komatsu 0.054 кг.
    ["SN: 30001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
20.   198-911-6170   [1]   BRACKET Komatsu China
    ["SN: 30001-UP"]
23.   205-03-71331   [1]   COLLAR Komatsu China
    ["SN: 30001-UP"]
24.   01010-81270   [1]   BOLT Komatsu 0.078 кг.
    ["SN: 30001-UP"] analogs:["0101051270"]
26.   198-911-6430   [1]   TEE Komatsu China
    ["SN: 30001-UP"]
27.   07042-70108   [1]   PLUG Komatsu 0.007 кг.
    ["SN: 30001-UP"]
30.   195-911-5591   [1]   VALVE Komatsu 0.401 кг.
    ["SN: 30001-UP"]
35.   08034-20834   [2]   BAND Komatsu 0.01 кг.
    ["SN: 30002-30005"] analogs:["885180005"]
35.   08034-20823   [1]   BAND Komatsu 0.002 кг.
    ["SN: 30001-30001"]
36.   23S-43-53140   [1]   SPACER Komatsu 0.07 кг.
    ["SN: 30001-UP"]
37.   01011-81200   [1]   BOLT Komatsu 0.104 кг.
    ["SN: 30001-UP"] analogs:["801015583", "0101151200"]
39.   195-911-8570   [1]   BLOCK Komatsu 1.75 кг.
    ["SN: 30001-UP"]
40.   07042-70415   [2]   PLUG Komatsu 0.056 кг.
    ["SN: 30001-UP"]
41.   01010-81070   [1]   BOLT Komatsu 0.054 кг.
    ["SN: 30001-UP"] analogs:["0101051070"]
44.   130-902-1410   [2]   NIPPLE Komatsu China
    ["SN: 30001-UP"]
45.   11Y-09-11160   [2]   CLIP Komatsu 0.01 кг.
    ["SN: 30079-UP"]
46.   198-911-6420   [1]   BRACKET Komatsu China
    ["SN: 30001-UP"]
