COOLING PIPING (MAIN WATER PIPING) (OIL COOLER INLET AND OUTLET) D475ASD-5E0 S/N 30001-UP (Super Dozer Spec.) Komatsu


OK. Запрос отправлен.
BULLDOZERS
D475ASD-5E0 S/N 30001-UP (Super Dozer Spec.)
COOLING SYSTEM
COOLING PIPING (MAIN WATER PIPING) (RADIATOR INLET AND OUTLET)
COOLING PIPING (MAIN WATER PIPING) (RADIATOR INLET AND OUTLET)
060010
COOLING PIPING (CLAMP AND AFTER COOLER PIPING)
COOLING PIPING (CLAMP AND AFTER COOLER PIPING)
060030
OIL COOLER
OIL COOLER
060040
OIL COOLER (MAIN PIPING)
OIL COOLER (MAIN PIPING)
060050

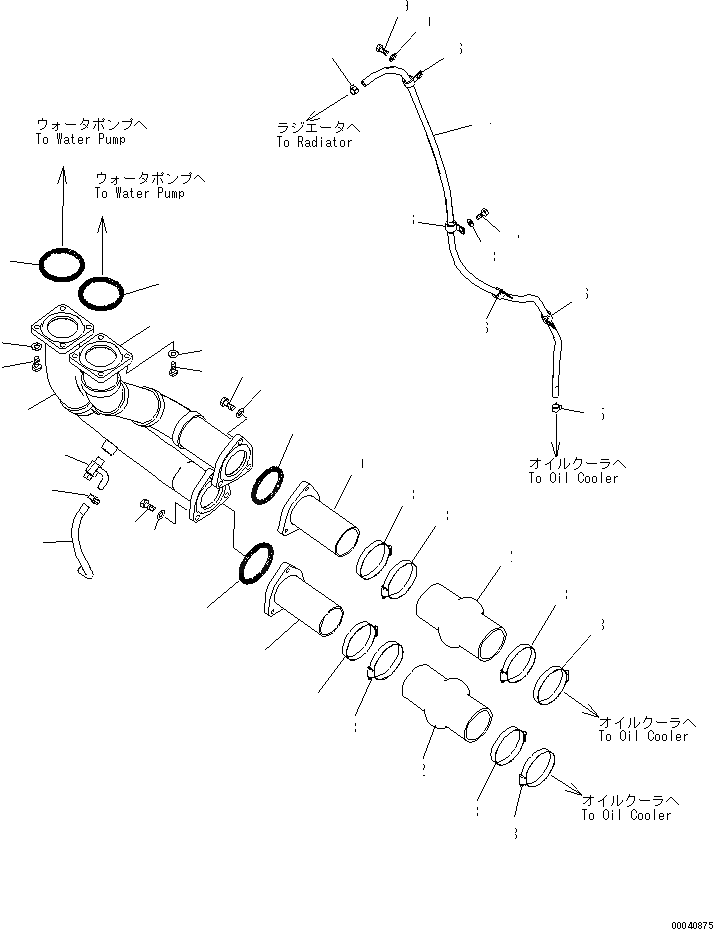

COOLING PIPING (MAIN WATER PIPING) (OIL COOLER INLET AND OUTLET)

D475ASD-5E0 S/N 30001-UP (Super Dozer Spec.)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
23
23
23
24
25
25
26
26
26
26
27
28
29
30
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   01010-81240   [4]   BOLT Komatsu 0.052 кг.
    ["SN: 30001-UP"] analogs:["801015573", "0101051240"]
2.   01643-31232   [4]   WASHER Komatsu 0.027 кг.
    ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
3.   198-03-75630   [1]   TUBE Komatsu China
    ["SN: 30001-UP"]
4.   07000-72110   [1]   O-RING Komatsu China 0.004 кг.
    ["SN: 30001-UP"] analogs:["0700062110", "R0700072110"]
5.   07730-40004   [1]   VALVE Komatsu 0.33 кг.
    ["SN: 30001-UP"]
6.   175-03-31530   [1]   HOSE Komatsu 0.15 кг.
    ["SN: 30001-UP"]
7.   07281-00197   [1]   CLAMP Komatsu 0.015 кг.
    ["SN: 30001-UP"] analogs:["1950313250"]
10.   198-03-61480   [1]   TUBE Komatsu China
    ["SN: 30001-UP"]
12.   198-03-51451   [1]   HOSE Komatsu 1 кг.
    ["SN: 30001-UP"] analogs:["1980351450"]
13.   07289-00105   [4]   CLAMP Komatsu 0.071 кг.
    ["SN: 30001-UP"] analogs:["2050961110"]
14.   198-03-75620   [1]   TUBE Komatsu China
    ["SN: 30001-UP"]
24.   198-03-75370   [1]   HOSE Komatsu China
    ["SN: 30001-UP"]
25.   11Y-09-11140   [2]   CLIP Komatsu 0.01 кг.
    ["SN: 30001-UP"]
26.   04434-51912   [4]   CLIP Komatsu 0.02 кг.
    ["SN: 30001-UP"]
27.   01010-81220   [3]   BOLT Komatsu 0.032 кг.
    ["SN: 30004-UP"] analogs:["0101051220"]
27.   01010-81225   [3]   BOLT Komatsu 0.074 кг.
    ["SN: 30001-30003"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
29.   01010-81020   [1]   BOLT Komatsu 0.161 кг.
    ["SN: 30004-UP"] analogs:["801014093", "0101051020", "801015108"]
30.   01643-31032   [1]   WASHER Komatsu 0.054 кг.
    ["SN: 30004-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
