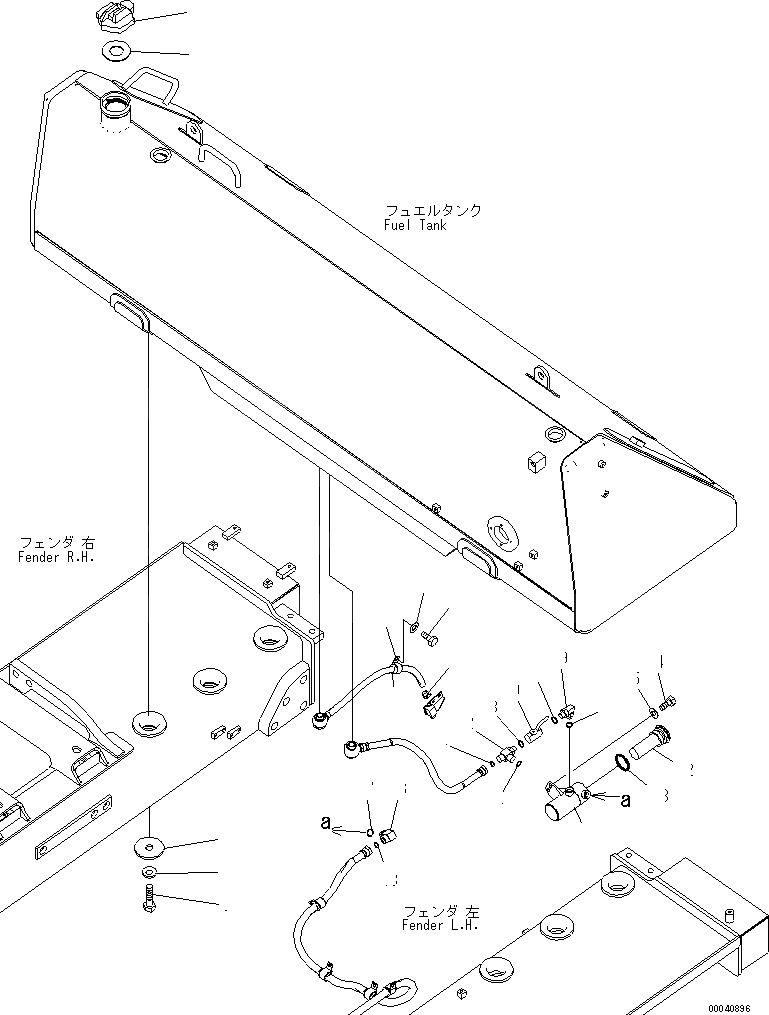

FUEL TANK (FUEL PIPING)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 07091-21200 | [1] | CAP Komatsu | 1.1 кг. |
| ["SN: 30001-UP"] analogs:["0709111200", "0709101200"] | ||||
| 2. | 07050-21202 | [1] | GASKET Komatsu | 0.014 кг. |
| ["SN: 30001-UP"] | ||||
| 3. | 198-09-31210 | [1] | CLAMP Komatsu | 0.07 кг. |
| ["SN: 30001-UP"] | ||||
| 4. | 04434-53212 | [1] | CLIP Komatsu | 0.042 кг. |
| ["SN: 30001-UP"] | ||||
| 5. | 07095-20523 | [1] | CUSHION Komatsu | 0.023 кг. |
| ["SN: 30001-UP"] | ||||
| 6. | 01010-81225 | [1] | BOLT Komatsu | 0.074 кг. |
| ["SN: 30001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 7. | 01643-31232 | [1] | WASHER Komatsu | 0.027 кг. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 8. | 01011-82715 | [6] | BOLT Komatsu | 0.675 кг. |
| ["SN: 30001-UP"] | ||||
| 9. | 01643-32780 | [6] | WASHER Komatsu China | 0.106 кг. |
| ["SN: 30001-UP"] | ||||
| 10. | 198-04-31210 | [6] | PLATE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 11. | 198-04-65451 | [1] | CASE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 12. | 195-04-11150 | [1] | STRAINER Komatsu | 1.32 кг. |
| ["SN: 30001-UP"] | ||||
| 13. | 07000-03065 | [1] | O-RING Komatsu China | 0.01 кг. |
| ["SN: 30001-UP"] | ||||
| 14. | 01010-81235 | [2] | BOLT Komatsu | 0.048 кг. |
| ["SN: 30001-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 16. | 569-43-83610 | [1] | ELBOW Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 17. | 07002-12034 | [1] | O-RING Komatsu China | 0.94 кг. |
| ["SN: 30001-UP"] analogs:["0700002034", "0700202034", "0700012034"] | ||||
| 18. | 02896-11018 | [1] | O-RING Komatsu | 0.24 кг. |
| ["SN: 30001-UP"] analogs:["855051018", "R0289611018"] | ||||
| 19. | 14X-04-21630 | [1] | ELBOW Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 20. | 14X-04-21620 | [1] | VALVE Komatsu | 0.38 кг. |
| ["SN: 30001-UP"] | ||||
| 22. | 419-62-33291 | [1] | TEE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 24. | 02896-11015 | [2] | O-RING Komatsu | 0.21 кг. |
| ["SN: 30001-UP"] analogs:["21D0969770", "855051016"] | ||||
