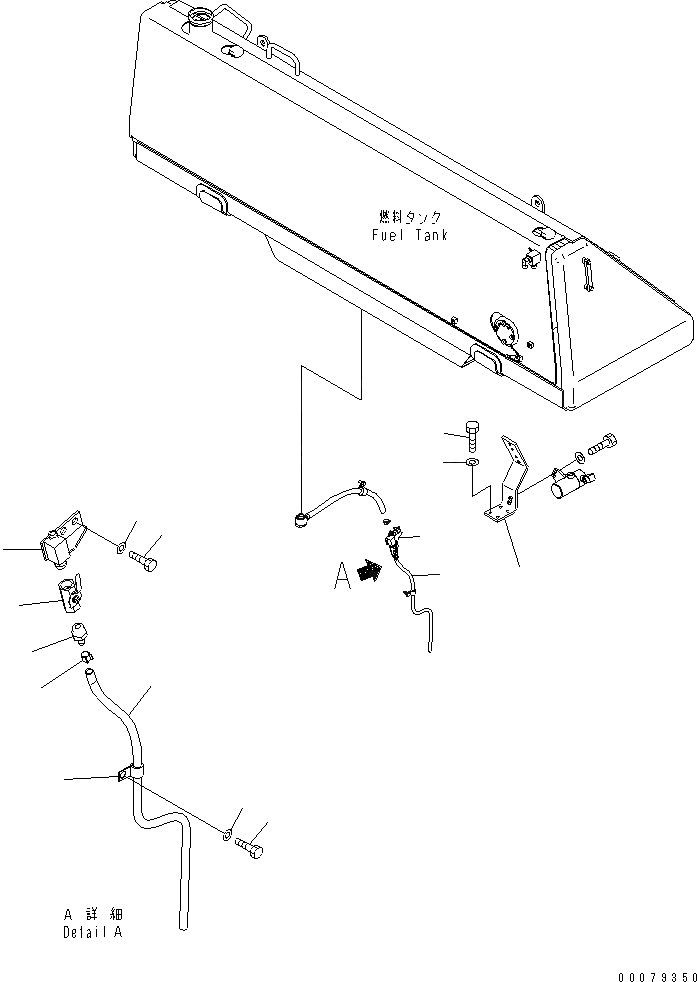

FUEL LINE (REAR FUEL LINE)
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 198-04-31161 | [1] | JOINT Komatsu | 0.55 кг. |
| ["SN: 30001-UP"] | ||||
| 2. | 07700-40460 | [1] | VALVE Komatsu | 0.228 кг. |
| ["SN: 30001-UP"] analogs:["0770020504"] | ||||
| 3. | 154-04-12480 | [1] | NIPPLE Komatsu | 0.07 кг. |
| ["SN: 30001-UP"] | ||||
| 4. | 07270-01280 | [1] | TUBE Komatsu | 0.129 кг. |
| ["SN: 30001-UP"] analogs:["0727001295", "0727001290", "0727001260"] | ||||
| 5. | 07285-00130 | [1] | CLIP Komatsu | 3.7 кг. |
| ["SN: 30001-UP"] | ||||
| 6. | 01010-81225 | [2] | BOLT Komatsu | 0.074 кг. |
| ["SN: 30001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 7. | 01643-31232 | [2] | WASHER Komatsu | 0.027 кг. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 8. | 04434-51512 | [1] | CLIP Komatsu | 0.02 кг. |
| ["SN: 30001-UP"] analogs:["0803501514"] | ||||
| 9. | 01010-81220 | [1] | BOLT Komatsu | 0.032 кг. |
| ["SN: 30001-UP"] analogs:["0101051220"] | ||||
| 11. | 198-78-61311 | [1] | BRACKET Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 12. | 01010-81230 | [4] | BOLT Komatsu | 0.043 кг. |
| ["SN: 30001-UP"] analogs:["0101051230", "01010B1230"] | ||||
