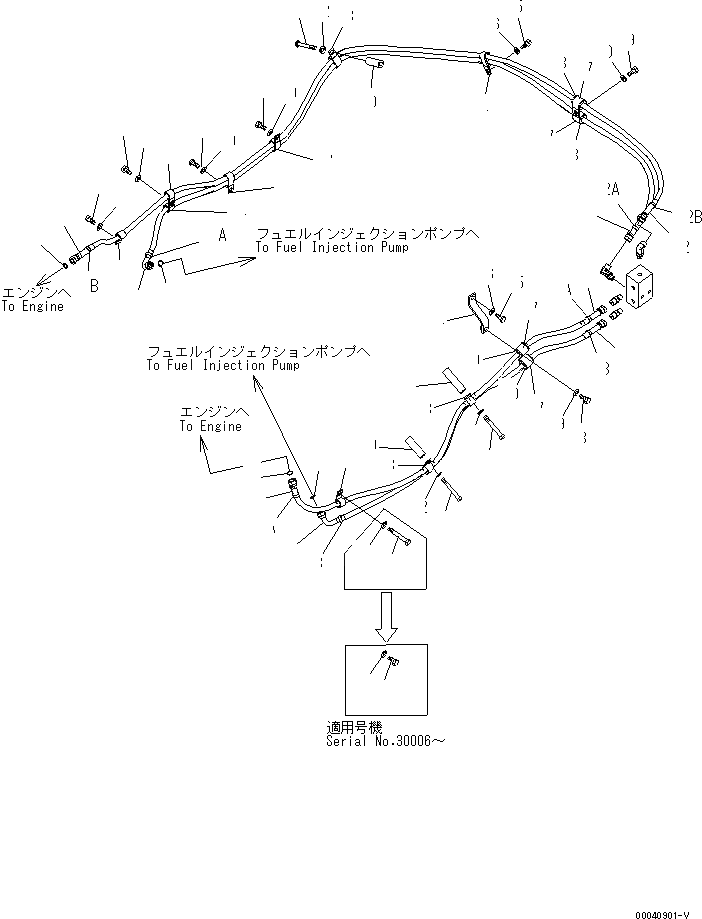

FUEL LINE (ENGINE LINE)
1
1
2
2
2A
2A
2B
2B
3
3
4
5
5
6
6
7
8
9
10
11
12
13
13
14
15
16
17
17
18
19
20
20
21
21
22
22
22A
22A
22B
22B
23
23
24
24
24
25
25
26
26
27
27
28
28
29
29
30
31
32
33
34
35
36
37
37
38
38
39
40
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 02763-00311 | [1] | HOSE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 2. | 02762-00315 | [1] | HOSE Komatsu | 0.47 кг. |
| ["SN: 30001-UP"] | ||||
| 2A. | 20Y-62-22820 | [2] | BAND, BLUE Komatsu | 0.01 кг. |
| ["SN: 30001-UP"] | ||||
| 2B. | 20Y-62-22790 | [2] | BAND, RED Komatsu | 0.001 кг. |
| ["SN: 30001-UP"] | ||||
| 3. | 02896-11009 | [2] | O-RING Komatsu China | 0.01 кг. |
| ["SN: 30001-UP"] analogs:["R0289611009", "0286911009"] | ||||
| 4. | 04434-51810 | [1] | CLIP Komatsu | 0.023 кг. |
| ["SN: 30001-UP"] | ||||
| 5. | 01010-81020 | [1] | BOLT Komatsu | 0.161 кг. |
| ["SN: 30006-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 5. | 01010-81055 | [1] | BOLT Komatsu | 0.078 кг. |
| ["SN: 30001-30005"] analogs:["0101051055"] | ||||
| 6. | 01643-31032 | [1] | WASHER Komatsu | 0.054 кг. |
| ["SN: 30001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 7. | 6150-71-7130 | [1] | COLLAR Komatsu | 0.13 кг. |
| ["SN: 30001-UP"] | ||||
| 8. | 01011-81010 | [1] | BOLT Komatsu | 0.078 кг. |
| ["SN: 30001-UP"] analogs:["0101151010"] | ||||
| 10. | 198-04-65430 | [1] | SPACER Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 11. | 01010-81095 | [1] | BOLT Komatsu | 0.059 кг. |
| ["SN: 30001-UP"] analogs:["0101051095"] | ||||
| 14. | 198-04-65170 | [1] | BRACKET Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 15. | 01010-81025 | [1] | BOLT Komatsu | 0.36 кг. |
| ["SN: 30001-UP"] analogs:["0101051025", "0101651025", "801015109"] | ||||
| 17. | 04434-52512 | [2] | CLIP Komatsu | 0.034 кг. |
| ["SN: 30001-UP"] | ||||
| 18. | 01010-81225 | [1] | BOLT Komatsu | 0.074 кг. |
| ["SN: 30001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 19. | 01643-31232 | [1] | WASHER Komatsu | 0.027 кг. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 20. | 07095-20318 | [2] | CUSHION Komatsu | 0.03 кг. |
| ["SN: 30001-UP"] | ||||
| 21. | 02763-00325 | [1] | HOSE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 22. | 02762-00328 | [1] | HOSE Komatsu | 0.746 кг. |
| ["SN: 30001-UP"] | ||||
| 27. | 04435-51810 | [2] | CLIP Komatsu | 0.03 кг. |
| ["SN: 30001-UP"] | ||||
| 30. | 6112-23-6971 | [1] | SPACER Komatsu | 0.125 кг. |
| ["SN: 30001-UP"] | ||||
| 31. | 01010-81080 | [1] | BOLT Komatsu | 0.06 кг. |
| ["SN: 30001-UP"] analogs:["0101051080"] | ||||
| 34. | 04434-51812 | [1] | CLIP Komatsu | 0.019 кг. |
| ["SN: 30001-UP"] | ||||
| 35. | 01010-81230 | [1] | BOLT Komatsu | 0.043 кг. |
| ["SN: 30001-UP"] analogs:["0101051230", "01010B1230"] | ||||
