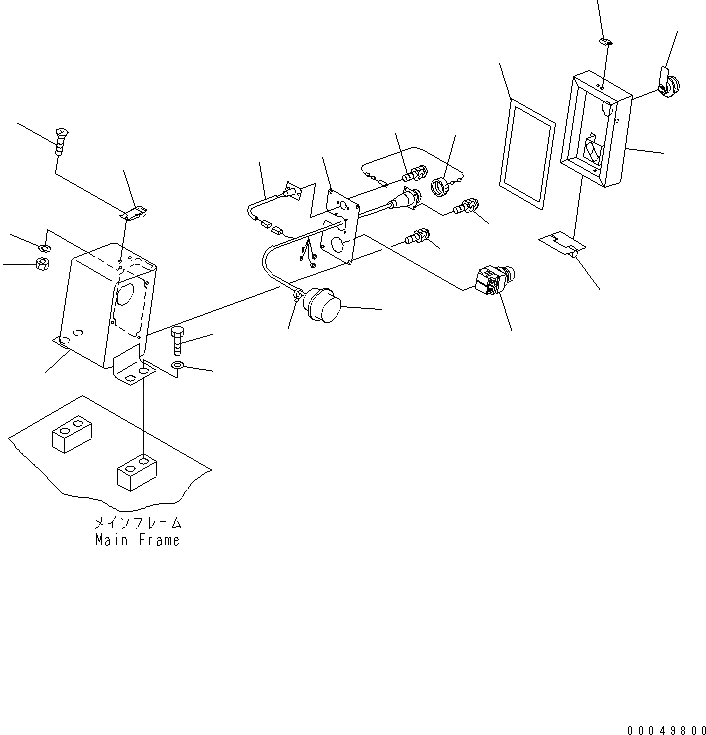

VHMS WIRING (DOWNLOAD BOX)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 198-06-62711 | [1] | BOX SUB ASS'Y Komatsu China | ||
| ["SN: 30001-UP"] |$3. | ||||
| 1. | 198-06-62731 | [1] | CASE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 2. | 198-06-62741 | [1] | COVER Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 3. | 198-06-62750 | [1] | SHEET Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 4. | 198-06-62820 | [1] | HINGE (WELDED) Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 5. | 205-60-71220 | [1] | LOCK ASS'Y Komatsu | 0.1 кг. |
| ["SN: 30001-UP"] | ||||
| 6. | 56B-07-12550 | [1] | CATCH Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 7. | 01236-40308 | [4] | SCREW Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 8. | 01580-60302 | [4] | NUT Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 9. | 01640-20305 | [4] | WASHER Komatsu | 0.001 кг. |
| ["SN: 30001-UP"] analogs:["0164120305"] | ||||
| 10. | 198-06-62760 | [1] | PANEL Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 11. | 01023-70414 | [4] | SCREW Komatsu | 0.003 кг. |
| ["SN: 30001-UP"] | ||||
| 12. | 569-97-82580 | [1] | SWITCH Komatsu | 0.51 кг. |
| ["SN: 30001-UP"] | ||||
| 13. | 562-43-15810 | [1] | CAP Komatsu | 0.05 кг. |
| ["SN: 30001-UP"] | ||||
| 14. | 01023-70310 | [6] | SCREW Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 15. | 198-06-62771 | [1] | WIRING HARNESS Komatsu | 0.5 кг. |
| ["SN: 30001-UP"] | ||||
| 16. | 198-06-62781 | [1] | WIRING HARNESS Komatsu | 0.3 кг. |
| ["SN: 30001-UP"] | ||||
| 17. | 01010-81225 | [4] | BOLT Komatsu | 0.074 кг. |
| ["SN: 30001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 18. | 01643-31232 | [4] | WASHER Komatsu | 0.027 кг. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 19. | 08034-20519 | [1] | BAND Komatsu | 0.001 кг. |
| ["SN: 30001-UP"] analogs:["2260611130", "885180010"] | ||||
