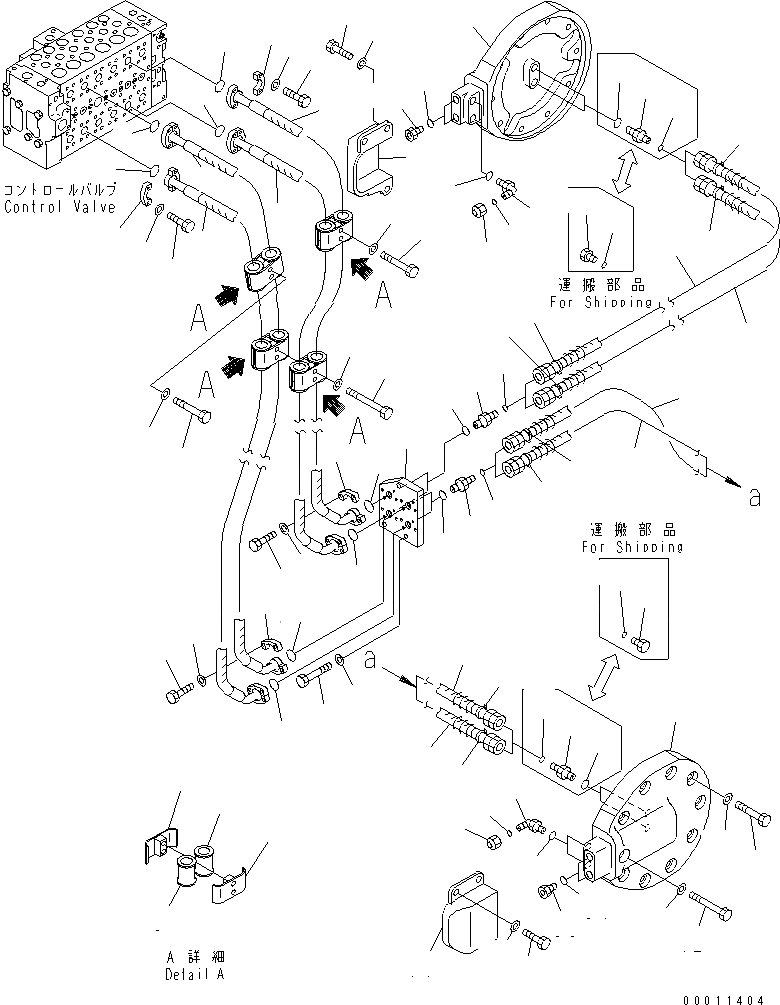

BLADE TILT LINE (FOR DUAL TILT PITCH DOZER)
1
1
2
2
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
26
26
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
42
43
43
44
45
46
46
47
47
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 198-61-68250 | [2] | HOSE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 2. | 198-61-68290 | [2] | HOSE Komatsu China | |
| ["SN: 30002-UP"] | ||||
| 2. | 07097-01021 | [2] | HOSE Komatsu China | 5.66 кг. |
| ["SN: 30001-30001"] | ||||
| 3. | 07000-F3032 | [8] | O-RING Komatsu China | 0.007 кг. |
| ["SN: 30001-UP"] analogs:["0700023032"] | ||||
| 4. | 07371-31049 | [16] | FLANGE Komatsu | 0.12 кг. |
| ["SN: 30001-UP"] analogs:["0737121049"] | ||||
| 5. | 07372-21035 | [32] | BOLT Komatsu | 0.033 кг. |
| ["SN: 30001-UP"] | ||||
| 6. | 01643-51032 | [32] | WASHER Komatsu | 0.17 кг. |
| ["SN: 30001-UP"] analogs:["R0164351032"] | ||||
| 7. | 07094-31024 | [8] | CLAMP Komatsu | 0.498 кг. |
| ["SN: 30001-UP"] | ||||
| 8. | 07095-01038 | [8] | CUSHION Komatsu | 0.075 кг. |
| ["SN: 30002-UP"] | ||||
| 8. | 07095-01035 | [8] | CUSHION Komatsu | 0.1 кг. |
| ["SN: 30001-30001"] analogs:["21T6276840"] | ||||
| 9. | 01011-81240 | [2] | BOLT Komatsu | 0.138 кг. |
| ["SN: 30001-UP"] | ||||
| 10. | 01643-31232 | [2] | WASHER Komatsu | 0.027 кг. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 11. | 01010-81275 | [2] | BOLT Komatsu | 0.082 кг. |
| ["SN: 30001-UP"] analogs:["0101051275"] | ||||
| 13. | 01010-81285 | [2] | BOLT Komatsu | 0.091 кг. |
| ["SN: 30001-UP"] analogs:["0101051285"] | ||||
| 15. | 198-61-61511 | [1] | BLOCK Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 16. | 01010-81245 | [3] | BOLT Komatsu | 0.056 кг. |
| ["SN: 30001-UP"] analogs:["0101051245", "801015574"] | ||||
| 18. | 02781-00628 | [4] | UNION Komatsu | 0.18 кг. |
| ["SN: 30001-UP"] | ||||
| 19. | 02896-21018 | [4] | O-RING Komatsu | 0.24 кг. |
| ["SN: 30001-UP"] | ||||
| 20. | 07002-22434 | [4] | O-RING Komatsu | 1.1 кг. |
| ["SN: 30001-UP"] analogs:["0700232434", "R0700222434"] | ||||
| 21. | 198-61-61541 | [1] | HOSE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 22. | 20Y-62-22820 | [2] | BAND, BLUE Komatsu | 0.01 кг. |
| ["SN: 30001-UP"] | ||||
| 23. | 198-61-61552 | [1] | HOSE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 24. | 20Y-62-22790 | [2] | BAND, RED Komatsu | 0.001 кг. |
| ["SN: 30001-UP"] | ||||
| 25. | 198-61-61521 | [1] | HOSE Komatsu | 3.8 кг. |
| ["SN: 30001-UP"] | ||||
| 27. | 198-61-61532 | [1] | HOSE Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 32. | 198-50-51390 | [2] | COVER Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 33. | 07040-12412 | [4] | PLUG Komatsu | 0.092 кг. |
| ["SN: 30001-UP"] analogs:["0704012414", "0704002412", "R0704012412"] | ||||
| 35. | 02782-1062A | [4] | ELBOW Komatsu | 0.4 кг. |
| ["SN: 30001-UP"] | ||||
| 38. | 02789-10628 | [4] | PLUG Komatsu | 0.2 кг. |
| ["SN: 30001-UP"] | ||||
| 39. | 07376-70628 | [4] | PLUG Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 40. | 02896-11018 | [4] | O-RING Komatsu | 0.24 кг. |
| ["SN: 30001-UP"] analogs:["855051018", "R0289611018"] | ||||
| 41. | 01010-81695 | [18] | BOLT Komatsu | 0.181 кг. |
| ["SN: 30001-UP"] analogs:["0101061695", "0101031695"] | ||||
| 42. | 01011-81625 | [2] | BOLT Komatsu | 0.227 кг. |
| ["SN: 30001-UP"] analogs:["0101131625", "0101161625"] | ||||
| 43. | 01643-31645 | [20] | WASHER Komatsu | 0.072 кг. |
| ["SN: 30001-UP"] analogs:["802170005", "0164301645"] | ||||
| 44. | 198-30-51430 | [1] | COVER,L.H. Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 45. | 198-30-51440 | [1] | COVER,R.H. Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 46. | 01010-81635 | [6] | BOLT Komatsu | 0.088 кг. |
| ["SN: 30001-UP"] analogs:["0101061635", "801015185", "0101051635", "0101031635"] | ||||
