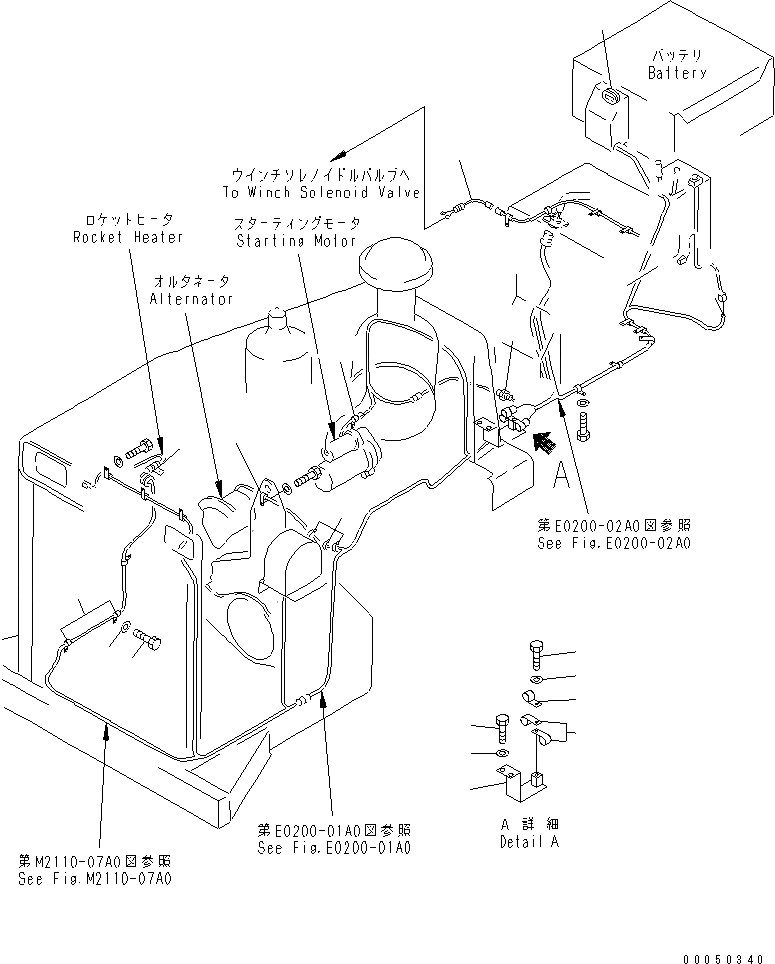

ROCKET HEATER WIRING(#37828-)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 08036-90814 | [8] | CLIP Komatsu | 0.012 кг. |
| ["SN: 36551-UP"] analogs:["0803600814"] | ||||
| 2. | 01010-81220 | [8] | BOLT Komatsu | 0.032 кг. |
| ["SN: 36551-UP"] analogs:["0101051220"] | ||||
| 3. | 01643-31232 | [8] | WASHER Komatsu | 0.027 кг. |
| ["SN: 36551-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 4. | 08036-91414 | [1] | CLIP Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 5. | 08620-00000 | [1] | SENSOR Komatsu China | 0.2 кг. |
| ["SN: 36551-UP"] analogs:["1980611942", "1980611941"] | ||||
| 6. | 04434-51412 | [1] | CLIP Komatsu | 0.02 кг. |
| ["SN: 36551-UP"] | ||||
| 7. | 08034-00519 | [5] | BAND Komatsu | 0.002 кг. |
| ["SN: 36551-UP"] analogs:["885180004"] | ||||
| 8. | 156-06-22250 | [1] | BRACKET Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 9. | 01010-81225 | [2] | BOLT Komatsu | 0.074 кг. |
| ["SN: 36551-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 11. | 195-06-41840 | [2] | CLIP Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 12. | 195-06-41830 | [1] | CLIP Komatsu | 0.000 кг. |
| ["SN: 36551-UP"] | ||||
| 15. | 170-43-11370 | [1] | GROMMET Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 16. | 195-06-41820 | [1] | CLIP Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 17. | 196-06-21240 | [1] | WIRE ASS'Y Komatsu | 0.14 кг. |
| ["SN: 36551-UP"] | ||||
