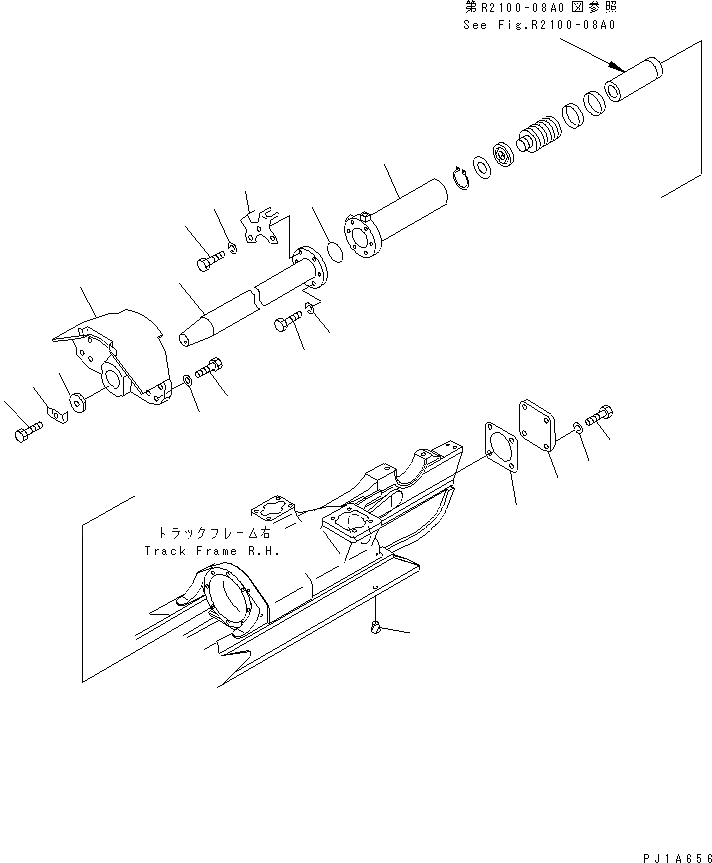

RECOIL SPRING CYLINDER (R.H.)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 01010-81240 | [6] | BOLT Komatsu | 0.052 кг. |
| ["SN: 36551-UP"] analogs:["801015573", "0101051240"] | ||||
| 2. | 01602-21236 | [6] | WASHER,SPRING Komatsu | 0.006 кг. |
| ["SN: 36551-UP"] analogs:["M011601200006", "0160211236"] | ||||
| 3. | 154-30-11145 | [1] | CYLINDER Komatsu | 10.8 кг. |
| ["SN: 36551-UP"] analogs:["1543011141"] | ||||
| 4. | 154-30-12321 | [1] | COVER Komatsu | 0.76 кг. |
| ["SN: 36551-UP"] | ||||
| 5. | 07000-55070 | [1] | O-RING Komatsu | 0.01 кг. |
| ["SN: 36551-UP"] | ||||
| 6. | 154-30-44190 | [1] | COVER Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 7. | 154-30-11712 | [1] | PACKING Komatsu | 0.03 кг. |
| ["SN: 36551-UP"] | ||||
| 8. | 01010-81230 | [4] | BOLT Komatsu | 0.043 кг. |
| ["SN: 36551-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 10. | 154-30-11497 | [1] | YOKE Komatsu | 29.5 кг. |
| ["SN: 36551-UP"] | ||||
| 11. | 01010-82065 | [8] | BOLT Komatsu | 0.226 кг. |
| ["SN: 36551-UP"] analogs:["0101052065", "0101032065", "0101062065"] | ||||
| 12. | 01643-32060 | [8] | WASHER Komatsu China | 0.044 кг. |
| ["SN: 36551-UP"] analogs:["802170007", "0164322045", "0164302045"] | ||||
| 13. | 154-30-44410 | [1] | SHAFT Komatsu China | |
| ["SN: 36551-UP"] | ||||
| 14. | 154-30-11332 | [1] | WASHER Komatsu | 0.8 кг. |
| ["SN: 36551-UP"] | ||||
| 15. | 01010-82050 | [1] | BOLT Komatsu | 0.19 кг. |
| ["SN: 36551-UP"] analogs:["0101062050", "0101052050", "0101032050"] | ||||
| 16. | 154-30-11540 | [1] | LOCK Komatsu | 0.52 кг. |
| ["SN: 36551-UP"] | ||||
| 17. | 07049-02228 | [6] | PLUG Komatsu China | |
| ["SN: 36551-UP"] | ||||
