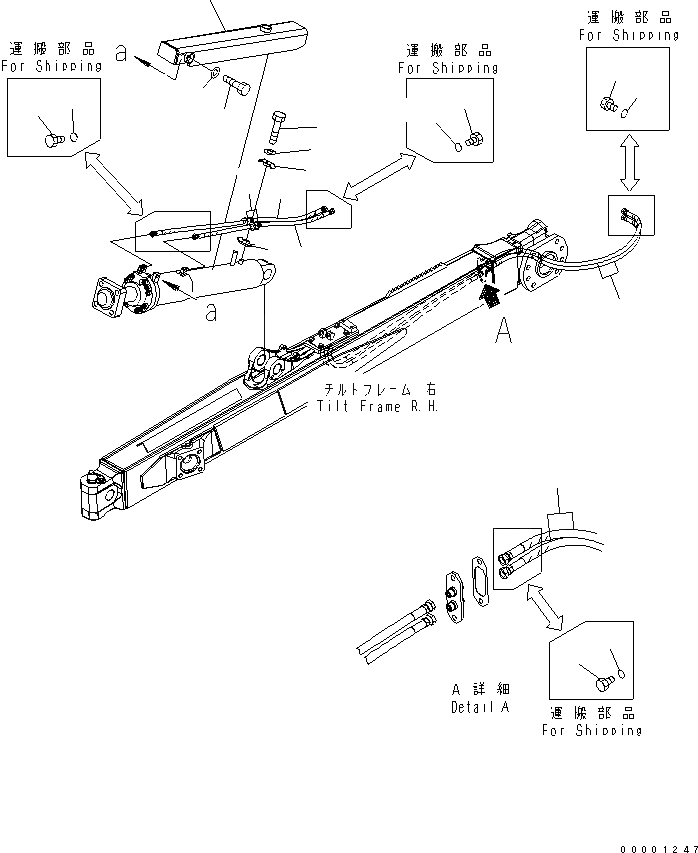

TILT PIPING(#20001-)
1
1
2
2
3
3
4
5
6
6
7
8
9
10
10
11
11
12
13
14
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 154-929-7211 | [2] | HOSE Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 2. | 07376-70422 | [2] | PLUG Komatsu | 0.09 кг. |
| ["SN: 20001-UP"] | ||||
| 3. | 02896-11012 | [2] | O-RING Komatsu China | 0.17 кг. |
| ["SN: 20001-UP"] analogs:["855051014"] | ||||
| 4. | 02765-00411 | [1] | HOSE Komatsu | 0.903 кг. |
| ["SN: 20001-UP"] | ||||
| 5. | 02765-00414 | [1] | HOSE Komatsu | 1.062 кг. |
| ["SN: 20001-UP"] | ||||
| 6. | 07094-30417 | [2] | CLAMP Komatsu | 0.179 кг. |
| ["SN: 20001-UP"] | ||||
| 7. | 07095-00419 | [2] | CUSHION Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 8. | 01010-81265 | [1] | BOLT Komatsu | 0.074 кг. |
| ["SN: 20001-UP"] analogs:["0101051265"] | ||||
| 9. | 01643-31232 | [1] | WASHER Komatsu | 0.027 кг. |
| ["SN: 20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 12. | 154-71-71720 | [1] | COVER Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 13. | 01010-81635 | [3] | BOLT Komatsu | 0.088 кг. |
| ["SN: 20001-UP"] analogs:["0101061635", "801015185", "0101051635", "0101031635"] | ||||
| 14. | 01643-31645 | [3] | WASHER Komatsu | 0.072 кг. |
| ["SN: 20001-UP"] analogs:["802170005", "0164301645"] | ||||
